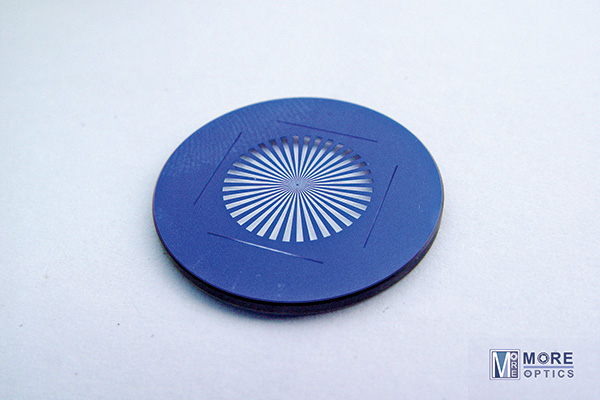

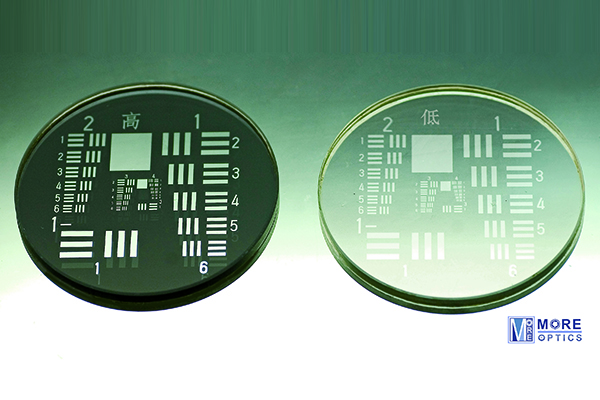

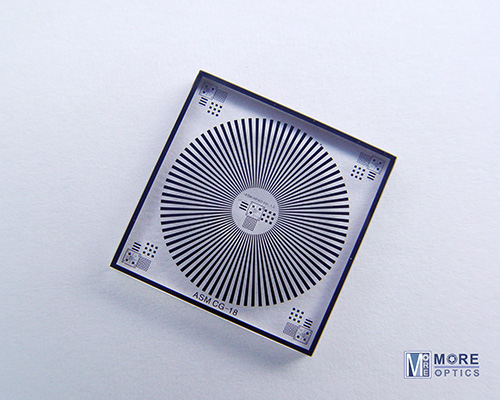

All kinds of Resolution Platess are important testing methods for geometric optical image evaluation. We can process not only the pivotal inspecting and testing Resolution Platess for optical benches and collimators, but also the Resolution Plates that meets ZB N35 003-89 and WT 1005-62 standard plates, radial Resolution Platess, asterism Resolution Platess for image evaluation, POLO plates for focal length testing, etc.
Features:
Regular Chrome Structure
Minimum line width: 0.7µm
Minimum resolution: 500lp/mm
Standard: GB/T, MIL
Contrast: High, Medium, Low
Fully customizable graphics

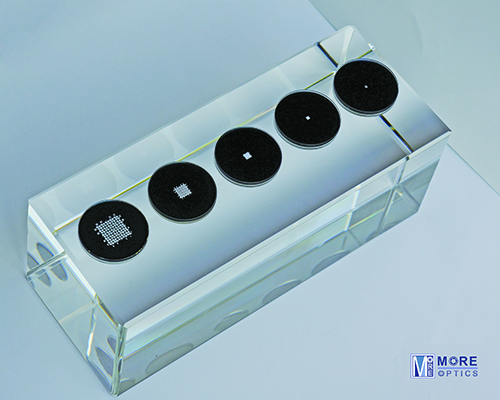

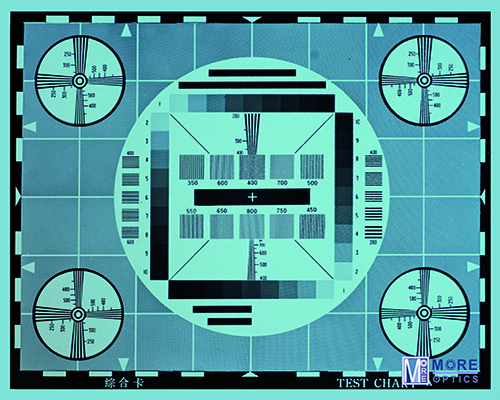

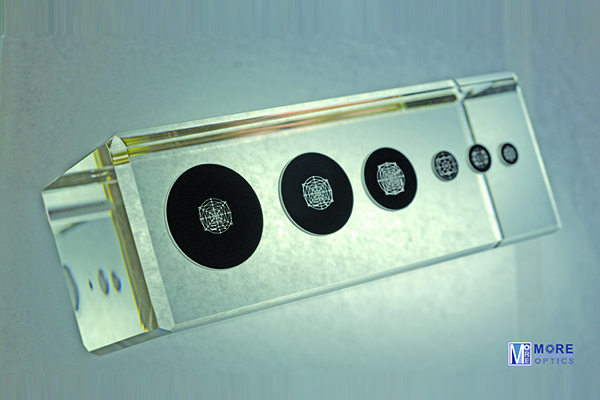

The micro-length Resolution Plates is also known as the CHART Plate, which is a geometry resolution standard plate used in testing camera short focal length lenses. It is widely used during the image quality control process of minicameras and cell phone cameras. Due to the high demand for image evaluation of digital camera objective lenses and CCD lenses, we have successively developed our micro-length Resolution Plates series. There are various kinds of standard Resolution Platess in the series ranging from 1 inch to 1/7 inch according to the different technical requirements of the camera objective lens. The maximum resolution is up to 300lp/mm.
Features:
Regular Chrome Structure
FOV Objective Lens: 1/7inch, 1/6inch, 1/3inch, 1/2inch, 1inch, 1.5 inch
Resolution Accuracy: <5% of line width
Maximum Resolution: 300lp/mm
Fully customizable graphics
