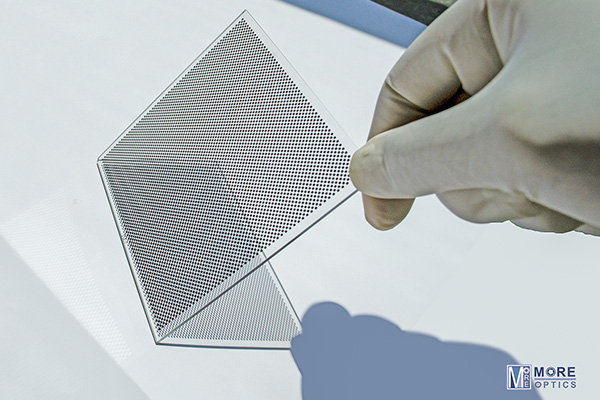

Raster Plates

The high-precision Raster Plates is mainly applied to various display & control systems, related instrumentation in the electronics industry, display screens of picture signal terminals, and parallax testing. We can make 490,000 dots within a 20mm x 20mm area.

Features:
Regular Chrome Structure
BBAR: Ravg<0.3%@400--700nm

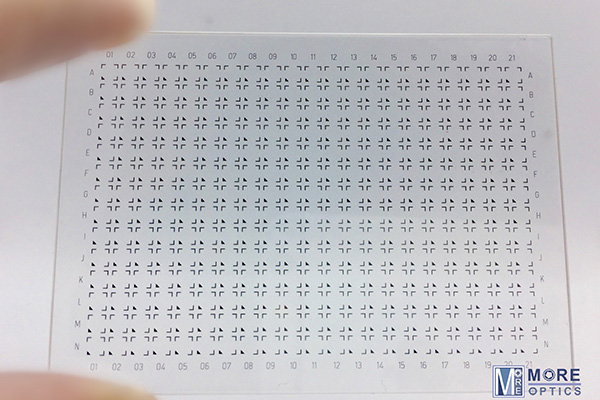

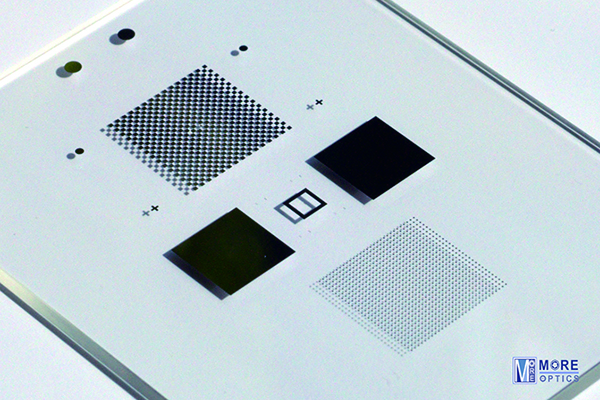

Pattern: Grid, Grating, Dot Matrix / Array
Length Accuracy: ±1µm
Dot Diameter: 3µm
Fully customizable graphics
