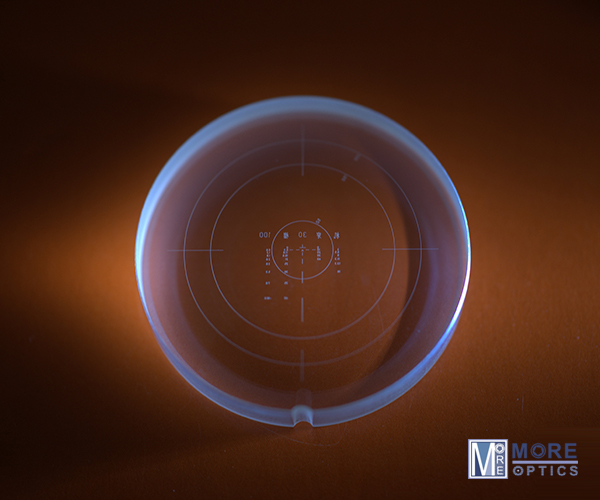

Other Application Reticles

We can fabricate reticles with custom materials and shapes based on your needs.

Features and Capabilities:

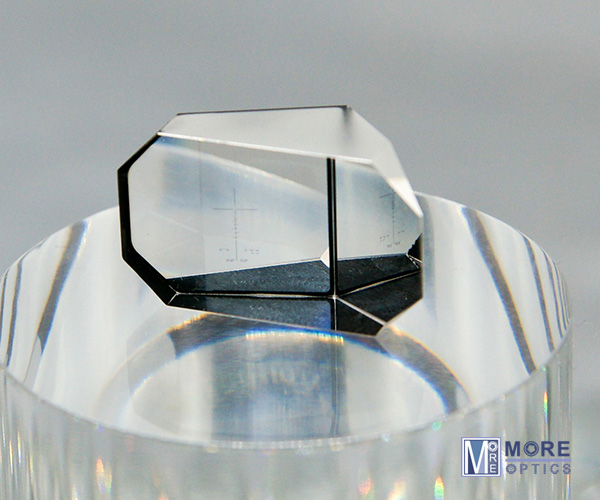

Bespoke Shapes: Sphere, Cylinder, Concave, Convex, Crescent, Prismatic, Polygon
Various Materials:
    -Optical glass: B270, BaK7, H-K9
    -Optical Quartz Glass: JGS-1, JGS-2
    -Far UV and Far IR Spectrum Region Materials: ZnS, MgF2, Al2O3, White Gem, Germanium Crystal

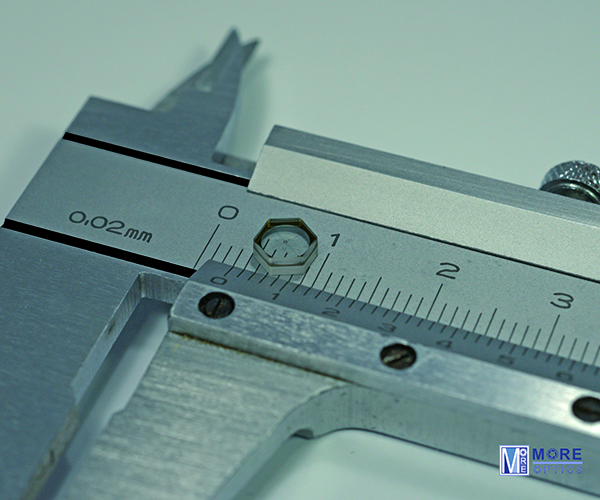

Micro Reticles: ⌀: 1.4mm
Large Reticles: ⌀> 350mm; Rectangular Dimensions> 350mm x 350mm
Ultra Thin and Thick Reticles: Thickness: 0.4mm–8mm+
Regular Chrome Structure
Night Vision Etch & Fill Structure
Doublet Design available with our Unique Shielding Technique
Broadband Anti-Reflective Coating: Ravg<0.3% @ 400–700nm
Chrome Coating:
     Optical Density (OD)>4,
     Low Reflectivity (R)<5%,
     Transmission (T)<0.01%
Minimum Etch & Fill Structure Line Width: 2µm
Minimum Chrome Structure Line Width: 0.7µm
Line Accuracy: <±0.2µm
Surface Imperfections: 0 Grade; Capable of Achieving the most Stringent ISO 10110 and MIL-PRF-13830B Surface Quality Requirements
Fully Customizable Graphics
