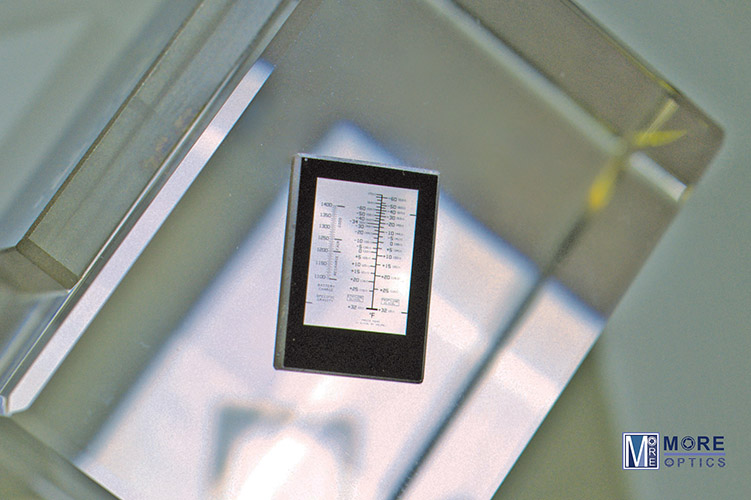

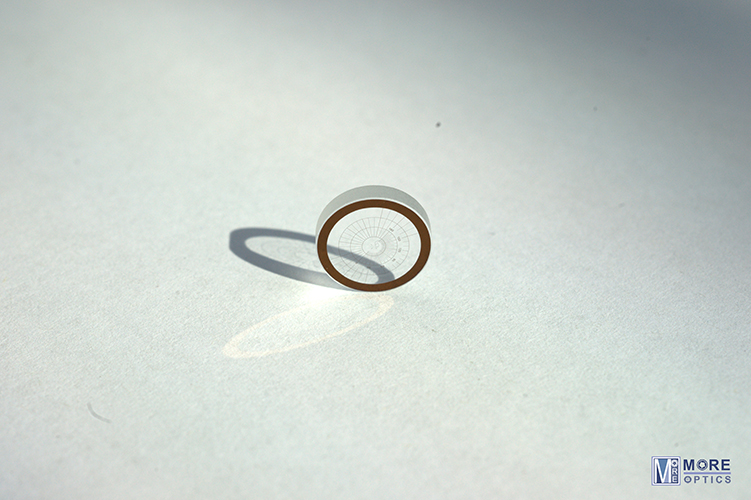

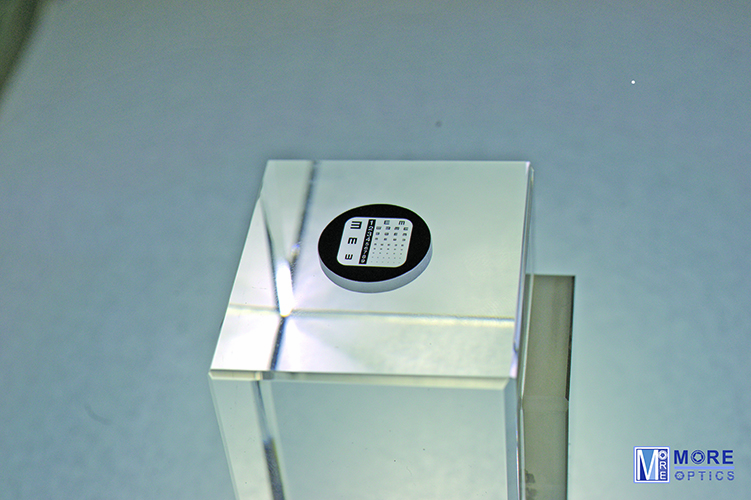

We can process the key reticle for medical photoelectric instruments and top-grade microscopes such as surgical microscopes, hemocytometers, medical microscopes, high-end phase contrast microscopes, nuclear magnetic resonance imaging apparatus, diopter inspection apparatus, visual degree instrumentation, etc.
Features and Capabilities:
Regular Chrome Structure
Broadband Anti-Reflective Coating: Ravg<0.3% @ 400–700nm
Chrome Coating:
Optical Density (OD)>4,
Low Reflectivity (R)<5%,
Transmission (T)<0.01%
Minimum Chrome Structure Line Width: 0.7µm
Line Accuracy: <±0.2µm
Surface Imperfections: 0 Grade; Capable of Achieving the most Stringent ISO 10110 and MIL-PRF-13830B Surface Quality Requirements
Fully Customizable Graphics

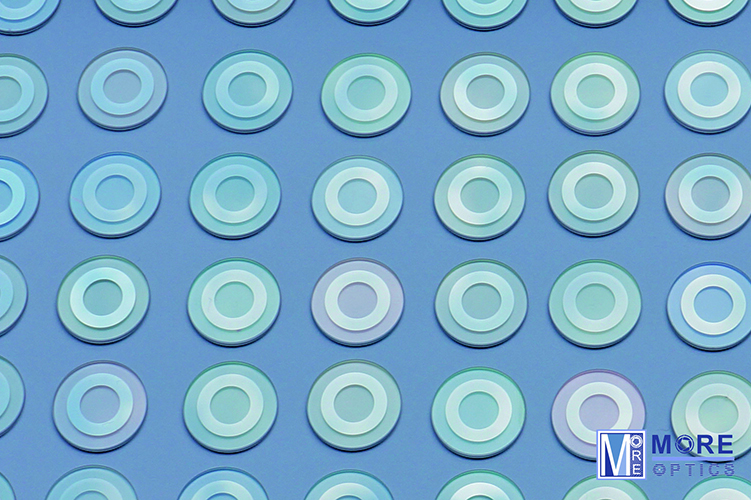

Positive-phase contrast reticles and negative-phase contrast reticles are used in microscopes which make the observation of the specimen three-dimensional, with black and white sharply contrasted.It achieves the phase contrast function of the optical path.
Features:
Absorption Coating: T:10%-20%
Phase Coating: 1/2l, 1/4l
Surface Defect Disease: 0-1 grade
Fully customizable graphics
